Latex Paint Spraying Robot (6.2m)
Latex Paint Spraying Robot (6.2m)
The Latex Paint Spraying Robot automates interior wall painting to deliver higher productivity and consistent coating quality.
95%+ Painting Coverage | 2,400–3,000 m²/Day | 1 Operator for 3 Robots
Suitable for interior wall painting in residential buildings, apartments, hotels, office buildings, and other large-scale commercial or residential projects.
One operator can supervise up to three robots, with workers only responsible for paint refilling and relocating the robots between work areas. The robots complete spraying tasks autonomously, maximizing labor efficiency on site.
Delivering painting quality that surpasses manual work, with over 95% painting coverage and a daily output of 2,400–3,000 m², These autonomous wall painting robots ensure uniform coating quality across large wall surfaces while improving project efficiency.

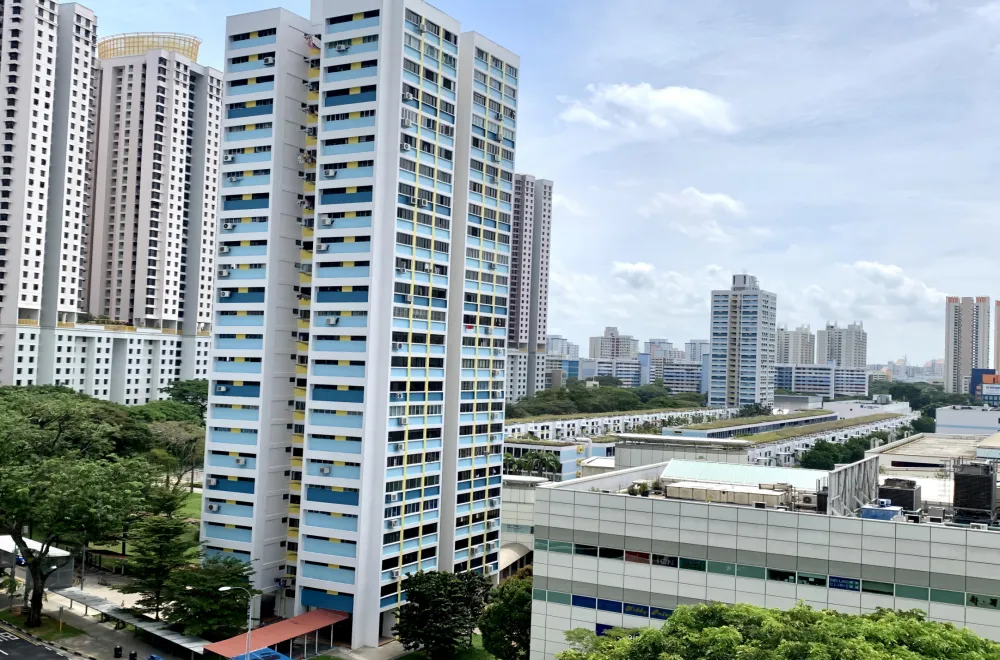

Designed for interior wall painting in high-rise apartment and condominium projects, the 6.2m Latex Paint Spraying Robot covers taller wall sections with fewer repositioning cycles. It helps contractors accelerate finishing schedules while maintaining consistent coating quality across large residential developments.

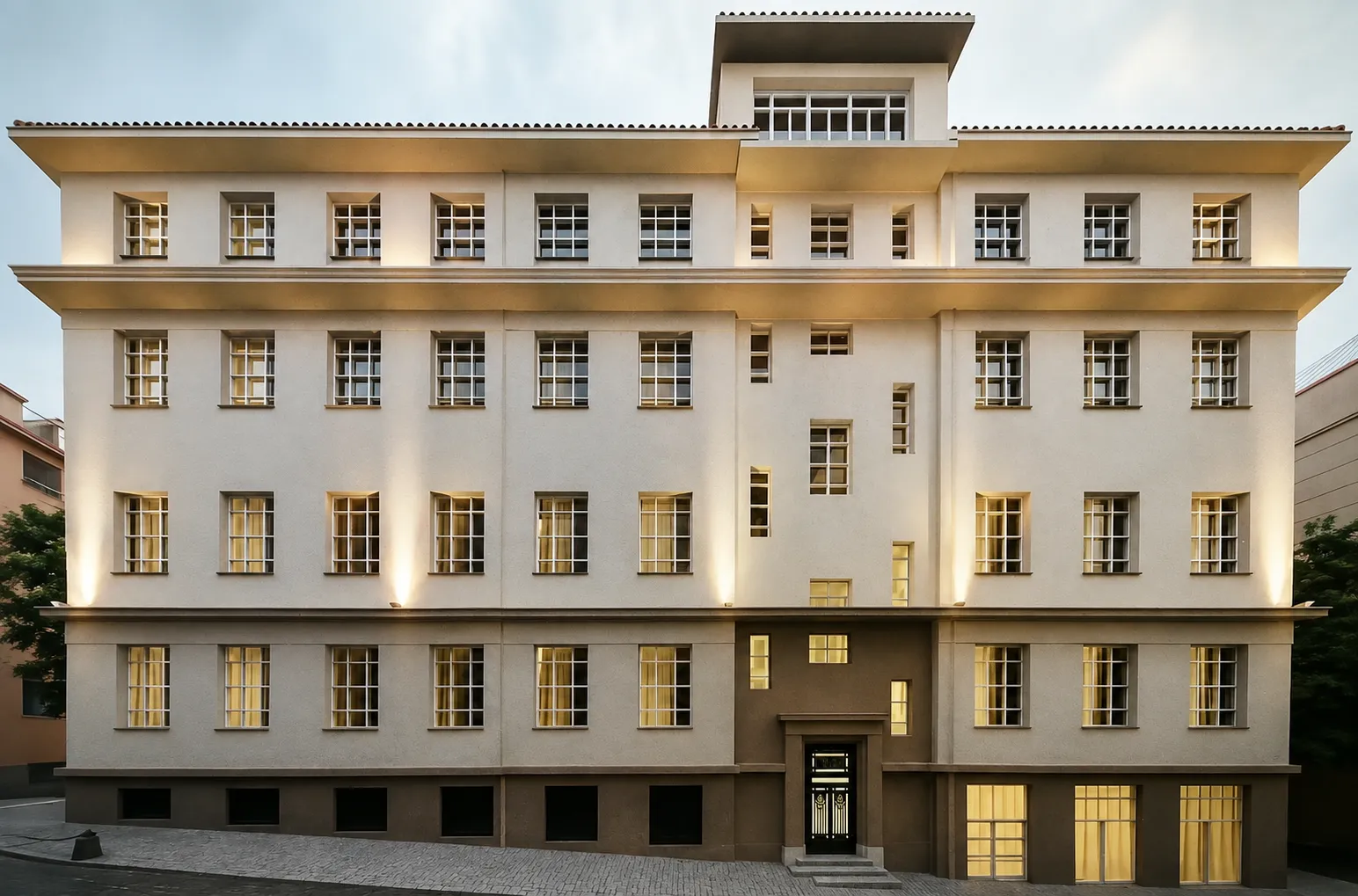

Ideal for hotel guest rooms, corridors, lobbies, and other high-ceiling interior spaces, the autonomous wall painting robot delivers efficient, uniform wall painting with minimal manual intervention. Its extended spraying height reduces the need for scaffolding or repeated equipment relocation.

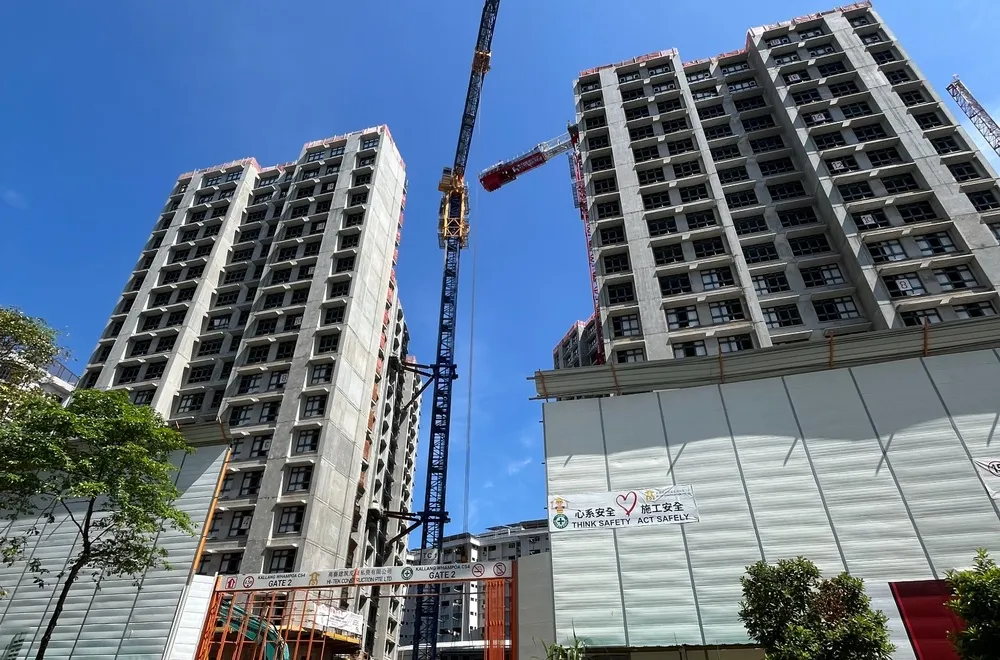

Built for large-scale office towers and commercial buildings, the automatic wall painting machine automates repetitive wall painting tasks while ensuring stable coating quality throughout multi-floor construction projects. One operator can supervise multiple robots to significantly improve labor productivity.

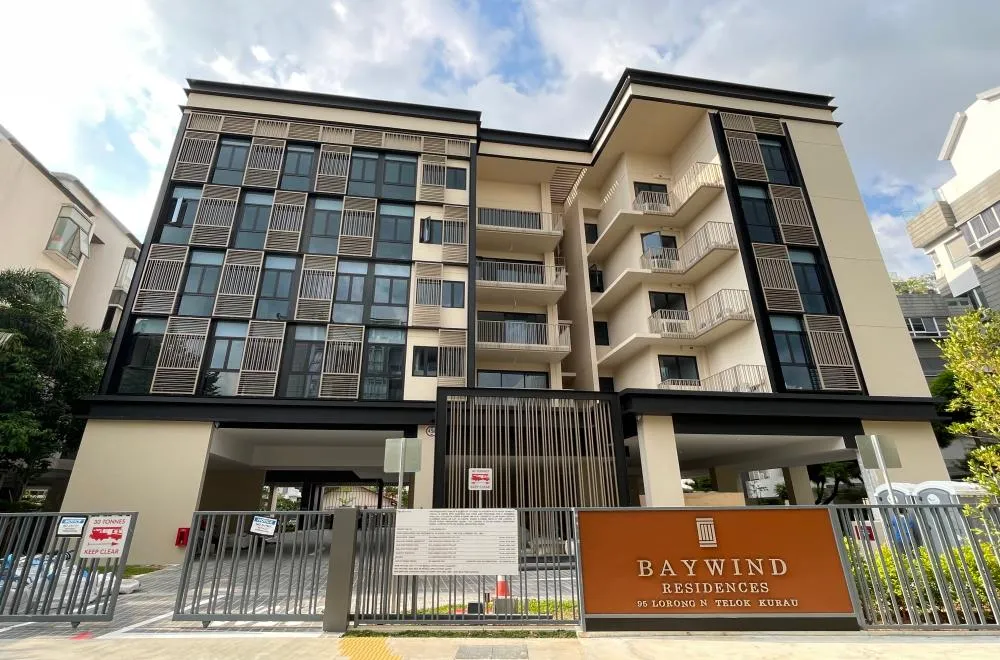

Suitable for schools, hospitals, exhibition centers, and other public facilities with extensive interior wall areas, the robot provides efficient, standardized painting for projects where construction speed, finish consistency, and labor efficiency are essential.
Featuring one of the industry's most compact designs with a single-side width under 800 mm, this automatic wall painting robot easily passes through complex construction environments and narrow spaces like standard doorways and elevators. Its omnidirectional chassis with zero turning radius enables flexible movement in confined environments, providing excellent site adaptability for residential buildings, apartments, hotels, and office projects.
The telescopic outrigger system combines compact transportation with reliable on-site stability. The telescopic support legs are compact and portable when retracted, which can easily pass through narrow spaces and are convenient for transport; while stable and secure when extended, ensuring safe and steady operation during extra-high spraying tasks.
Designed for demanding construction schedules, the robot delivers up to 12 hours of continuous operation on a single charge. The long-lasting battery minimizes downtime caused by charging interruptions, helping maintain high productivity across large-scale interior painting projects.
The robot adopts high-pressure airless spray technology to improve paint utilization and reduce material waste compared to traditional manual spraying. By minimizing overspray and supporting higher-viscosity coatings with lower dilution requirements, it ensures more efficient material application on wall surfaces.
The automatic wall painting machine delivers uniform, high-quality spraying with a single-coat thickness of 70 μm ± 5 μm, providing a smooth and uniform finish that outperforms both manual painting and similar products in the market.

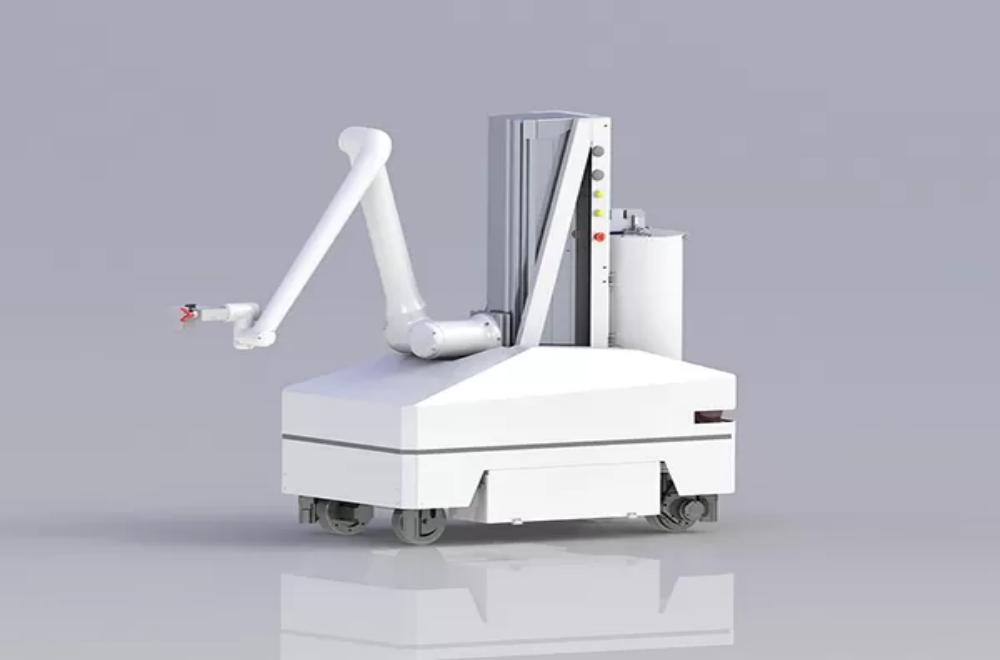

Powered by a 6-DOF robotic arm, lift mechanism, and AI-driven motion planning, the robot replicates human spraying techniques to automatically paint walls, ceilings, corners, beams, and other complex architectural features. Its compact body and omnidirectional chassis further enable excellent accessibility in confined construction environments.
Designed for large-scale interior painting projects, these autonomous wall painting robots achieve a daily spraying capacity of 2,400–3,000 m², significantly improving productivity while reducing labor requirements and project timelines.
Equipped with both active monitoring and passive protection systems and dual-layer protection, the robot continuously safeguards personnel and equipment throughout operation. Since deployment, it has maintained a zero safety incident record in real-world construction projects.
One-click control via tablet with an intuitive, visualized UI—no programming skills required. Ordinary workers can run the robot independently after basic training. Built-in standardized spraying programs allow quick job startup, eliminating the complexity and errors of manual parameter tuning.
With an average of just 0.33 failures per unit per month—only one-fifth of the industry average—the autonomous wall finishing robot is highly stable and dependable. Legend Robot provides a professional after-sales service team for timely support and reliable maintenance.
General & Operational Performance
| Parameter | Specification / Value |
| Spraying Type | Latex Paint |
| Spraying Method | Mobile Spraying / Fixed‑Point Spraying |
| Latex Paint Spraying Efficiency | 380m²/h |
| Coverage Rate | 95% |
| Spraying Width | Fixed‑Point: 800mmMobile: Infinite Continuation |
| Spraying Pressure | Recommended: 15MPa / Max: 25MPa |
| Equipment Stability | MTBF: ≥ 5000hOperational Lifetime:5‑10 yrs |
| Optimized Setup for Latex Paint Spraying | 1 operator + 3 robots = 6 traditional workers' output. |
Physical & Mechanical Specifications
| Parameter | Specification / Value |
| Dimensions | 14507801750mm |
| Weight | 1000kg |
| Packaging Dimensions | 160011002000mm |
| Max Allowed Spraying Height | 6.2m |
| Material Tank Capacity | 100L |
| Minimum Passage Width | 900mm (Automatic Spraying Mode) |
Mobility & Navigation Control
| Parameter | Specification / Value |
| Operating Speed | 0‑0.5m/s |
| Navigation Positioning Accuracy | ±30mm |
| Maximum Climbing Angle | 10° |
| Obstacle‑Cross | 30mm |
Power & Battery System
| Parameter | Specification / Value |
| Operating Power | 1kW |
| Battery Specifications | 48V, 105Ah |
| Battery Life | 12h (Including 2 Batteries) |
| Charging time ≤ 3h≥80% capacity after 2,000 cycles | |
| Easy manual battery replacement24/7 continuous operation |
Safety & Environmental Conditions
| Parameter | Specification / Value |
| Safety Protection | Active: LiDAR Obstacle AvoidancePassive: Rubber Crash Strips |
| Operating Temperature | 5℃ to 40℃ |
| Operating Humidity | ≤ 85% RH |
The robot can spray interior walls up to 6.2 meters high, making it ideal for high-rise residential buildings, hotels, office buildings, and other commercial projects with tall interior spaces. Its telescopic outrigger system provides stable support for safe and precise high-reach spraying.
Yes. Equipped with a 6-DOF robotic arm, lift mechanism, and AI-powered motion planning, the robot automatically sprays walls, ceilings, inside and outside corners, beams, and other architectural features with over 95% coverage.
One operator can supervise up to three robots, with workers mainly responsible for refilling paint and relocating the robots between work areas. This significantly reduces labor requirements while maintaining high productivity on large-scale interior painting projects.
The robot provides up to 12 hours of continuous operation on a full charge. Its long-endurance battery supports uninterrupted work throughout a full construction shift, minimizing charging downtime and improving overall project efficiency.
