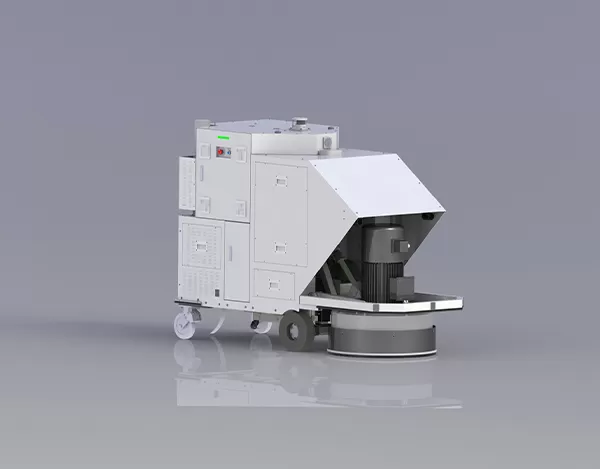

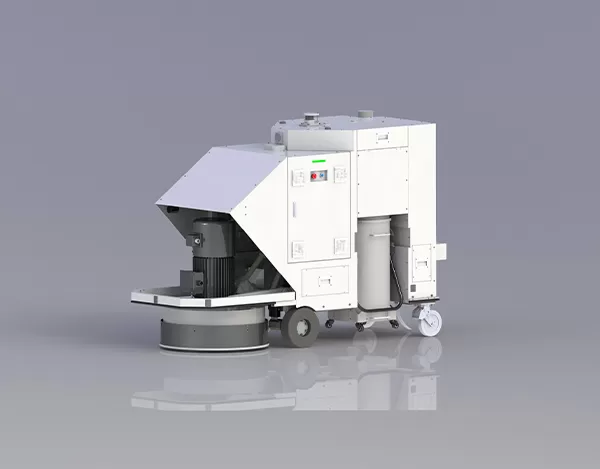

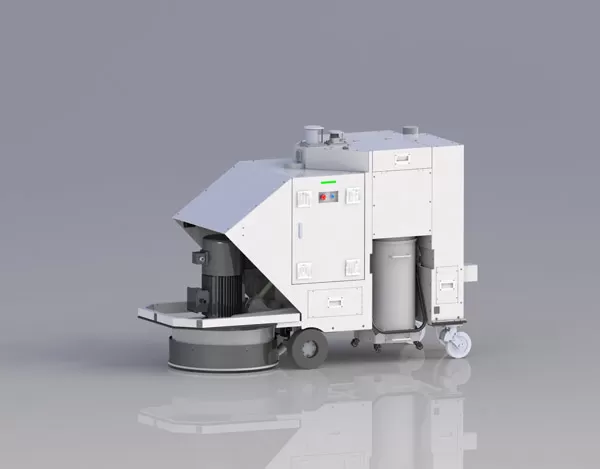

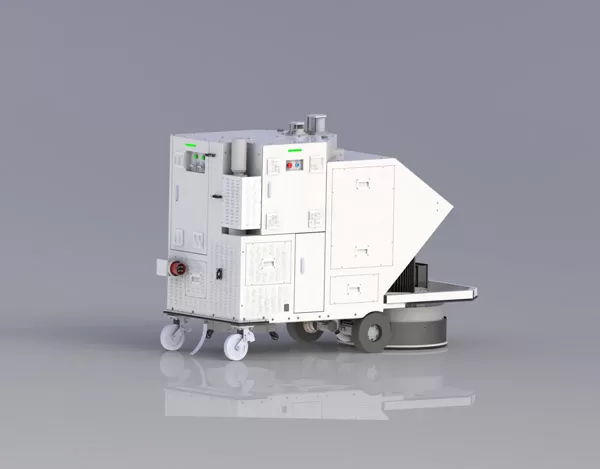

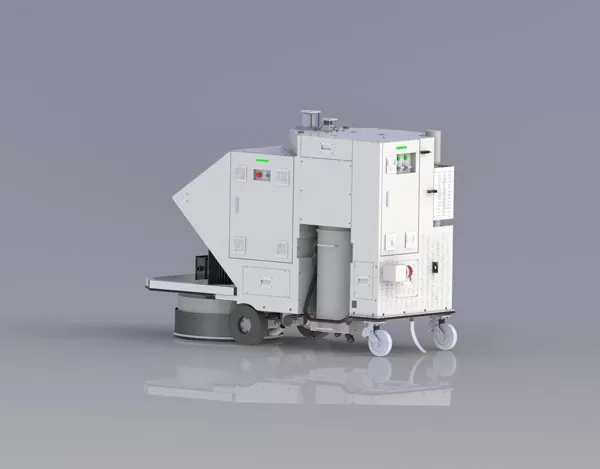

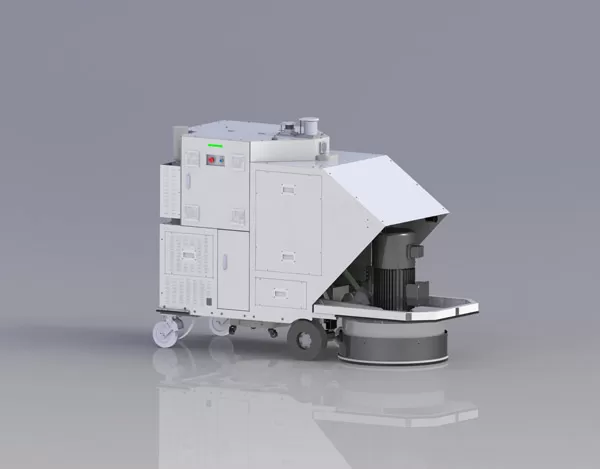

Floor Grinding Robot
Floor Grinding Robot
95%+ Coverage Rate | 800–1,000 m²/Day | 1 Robot, 1 Operator
The Floor Grinding Robot automates floor grinding and dust collection to deliver efficient and consistent floor surface preparation.
Suitable for concrete hardener floors, dry shake hardener floors, and epoxy flooring in underground parking garages, factory workshops, laboratories, sports venues, and other commercial or industrial projects.
One operator supervises one robot while the system performs fully automated floor grinding and dust collection throughout the entire operation, reducing manual workload and improving job-site efficiency.
Delivers grinding quality that surpasses manual operation, with over 95% coverage, 800–1,000 m²/day for rough grinding, and 3,000–4,000 m²/day for polishing.

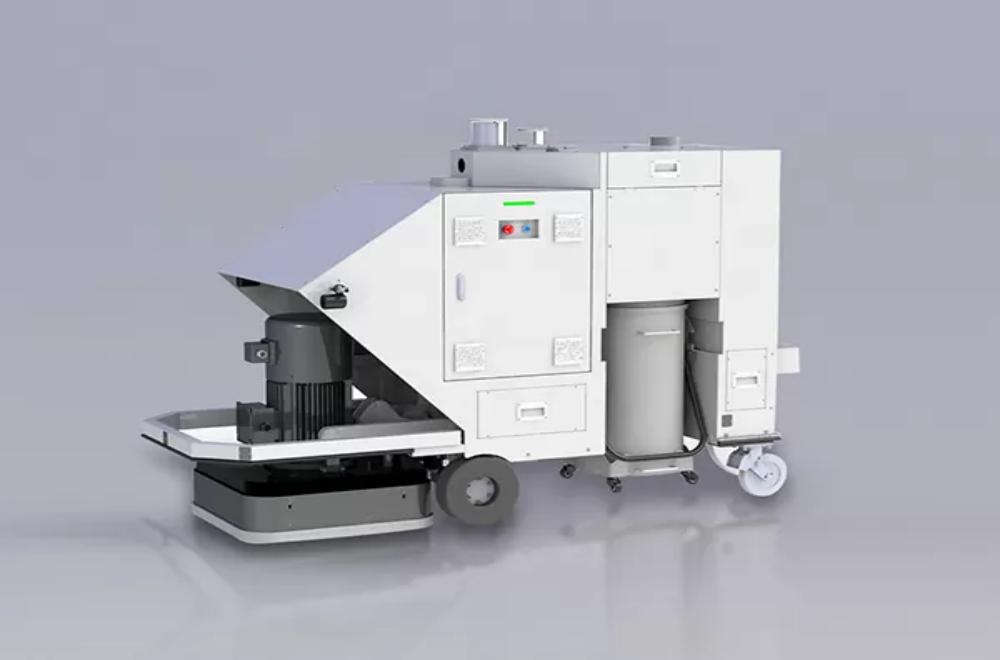

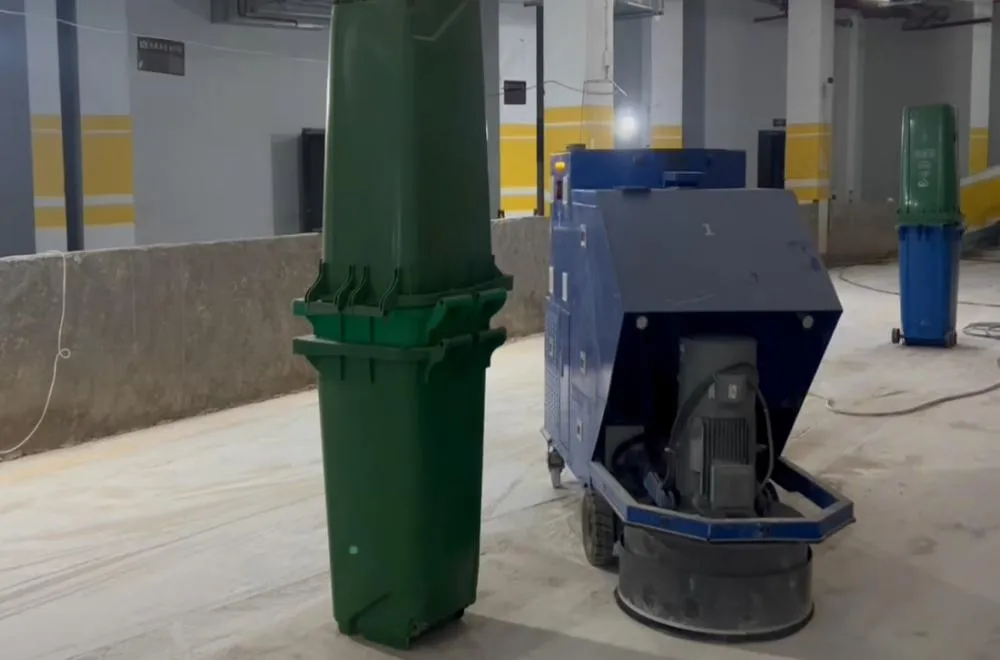

Ideal for large-scale underground parking structures, the Concrete Smoothing Robot efficiently handles concrete hardener and epoxy floor preparation. It ensures uniform surface grinding in confined environments with complex layouts, helping contractors improve efficiency in high-traffic infrastructure projects.

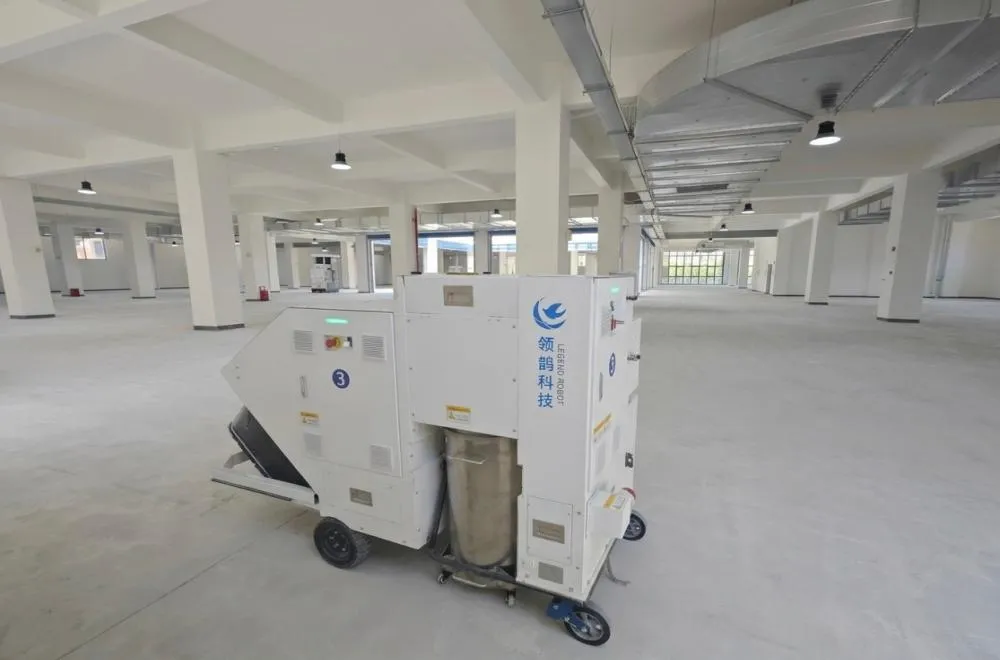

Designed for heavy-duty industrial environments such as manufacturing plants and workshops, the grinding robot delivers consistent grinding performance on concrete floors and durable surfaces. It supports continuous operation in demanding conditions while reducing manual labor requirements.
Suitable for laboratories, pharmaceutical facilities, and clean industrial spaces, the robot enables precise epoxy floor surface preparation. Its dust collection system helps maintain cleaner working conditions, making it ideal for environments with strict cleanliness requirements.

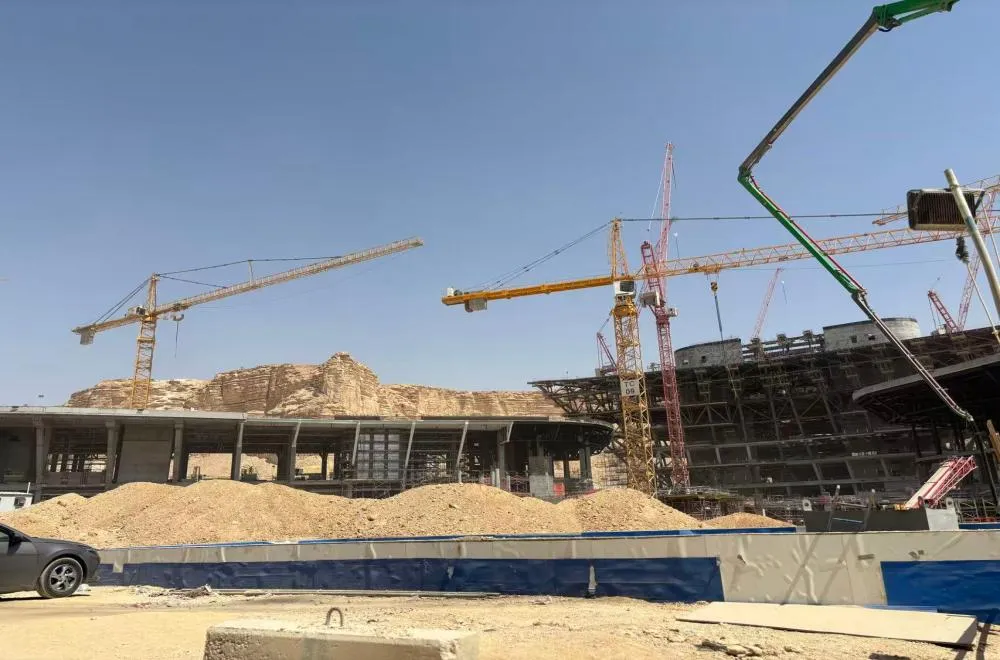

Used in sports halls, gyms, and multi-purpose arenas, the robot provides efficient floor grinding and surface renovation for large-area flooring systems. It ensures consistent flatness and prepares surfaces for coating or refurbishment with high efficiency.
Equipped with an automatic dust collection system, the Floor Grinding Robot features a 100L high-capacity dust bin designed to store more debris and reduce replacement frequency. The quick-release mechanism enables one-button loading and unloading, ensuring fast and efficient maintenance during continuous operation.
Utilizes a heavy self-weight structure combined with a preloaded downforce mechanism to minimize gaps between contact surfaces. This design enhances structural rigidity, improves operational stability, and ensures consistent grinding quality across large floor areas.
Supports quick-swap interfaces for both square and round grinding discs, enabling the robot to adapt to different floor conditions and construction requirements. This flexibility ensures consistent performance and greater versatility across varied project environments.
Thanks to the robot’s heavy self-weight and preloaded downforce design, rigidity is enhanced, and structural stability and reliability are improved—resulting in consistently high grinding quality.
The robot autonomously analyzes the environment and plans optimal grinding paths. It intelligently detects features like columns and fire hydrants, using a wraparound grinding strategy that ensures precise coverage with no over-grinding or missed spots. Coverage rate exceeds 95%.
Combining a large grinding disc with long battery life, the robot achieves an efficiency of 800–1,000 m²/day for initial grinding and 3,000–4,000 m²/day for polishing. Equipped with an automated dust collection and quick-release system, it offers high performance with excellent environmental protection.
Equipped with an intelligent dual-protection system (active alerts + passive safeguards), the robot continuously monitors operational status to ensure zero-risk performance. It has maintained a flawless safety record since launch.
Controlled via a tablet with a visualized UI , the system is intuitive and easy to operate. Ordinary workers can become proficient after training.
The Floor Grinding Robot is highly reliable and stable in operation, backed by a responsive professional support team that provides quick assistance and comprehensive service coverage for every site.
General & Operational Performance
| Parameter | Specification / Value |
| Floor Treatment Type | Concrete Hardener, Dry Shake Hardener, Epoxy Floors |
| Grinding Strategy / Method | Smart Autonomous Pathing Wraparound Strategy |
| Grinding Capacity / Efficiency | Up to 4,000 m²/day (Polishing Mode) |
| Coverage Rate | ≥ 95% |
| Grinding Width | 780mm |
| Dust Collection Capacity | 100L (Quick‑Release Bin) |
| Disc Compatibility | Square & Round Discs(Quick‑Swap Interface) |
| Equipment Stability | MTBF: ≥ 5000hOperational Lifetime:5‑10 yrs |
Physical & Mechanical Specifications
| Parameter | Specification / Value |
| Dimensions | 24509301690mm |
| Weight | 1250kg |
| Packaging Dimensions (L/W/H) | 265011301900mm |
| Dust Collection Bin Capacity | 100L |
| Minimum Clearance Width | 1100mm |
Mobility & Navigation Control
| Parameter | Specification / Value |
| Operating Speed | 0‑0.47m/s |
| Navigation Positioning Accuracy | ±30mm |
| Maximum Climbing Angle | 15° |
| Obstacle‑Cross | 30mm |
Power & Battery System
| Parameter | Specification / Value |
| Operating Power | 25kW |
| Operating Voltage | AC 380V, 50Hz |
| Battery Life | Plug‑in Power Supply24/7 continuous operation |
Safety & Environmental Conditions
| Parameter | Specification / Value |
| Safety Protection | Active: LiDAR Obstacle AvoidancePassive: Rubber Crash Strips |
| Operating Temperature | 5℃ to 40℃ |
| Operating Humidity | ≤ 85% RH |
The Floor Grinding Robot is designed for concrete hardener floors, dry shake hardener floors, and epoxy flooring. It is ideal for large-area floor preparation in underground parking garages, factory workshops, laboratories, sports venues, and other commercial or industrial projects.
Yes. The robot features a built-in automatic dust collection system with a 100L high-capacity dust bin and a quick-release mechanism, enabling continuous grinding while reducing airborne dust and simplifying debris disposal.
The robot combines autonomous path planning with a preloaded downforce design to deliver stable and uniform grinding results. It intelligently detects obstacles, optimizes grinding paths, and achieves over 95% coverage with minimal missed or repeated grinding.
Yes. The robot supports quick-swap interfaces for both square and round grinding discs, allowing contractors to adapt quickly to different floor conditions and construction requirements without changing equipment.
