Tile Laying Robot
Tile Laying Robot
Scale Tile Installation with Less Labor and Higher Output
95%+ coverage rate | 80–120 tiles/day | 1 robot + 2 workers
Suitable for tile installation in residential buildings, apartments, hotels, and office buildings, the tile paving robot delivers consistent precision and high-quality results.
One automatic tile laying robot works with two workers: one for operation, one for material refilling, reducing dependence on large skilled labor teams.
The robot focuses on large-area tile laying while workers complete edges, corners, and finishing tasks, ensuring both efficiency and flexibility on-site.
The floor tile robot reduces human error and rework while achieving a daily output of 80–120 tiles, making it ideal for large-scale flooring projects.

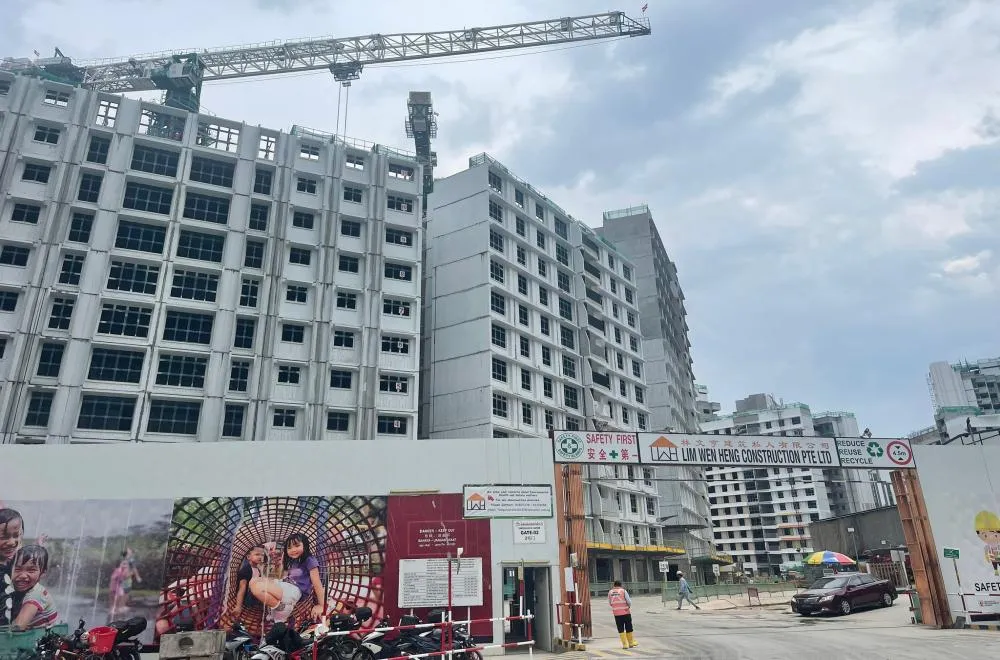

Large residential projects often involve repetitive tile installation across multiple units, making consistency and productivity essential. Our Tile Laying Robot automates floor tile installation with precise alignment and stable placement, reducing reliance on skilled labor. It helps contractors accelerate construction schedules while delivering uniform installation quality throughout the development.

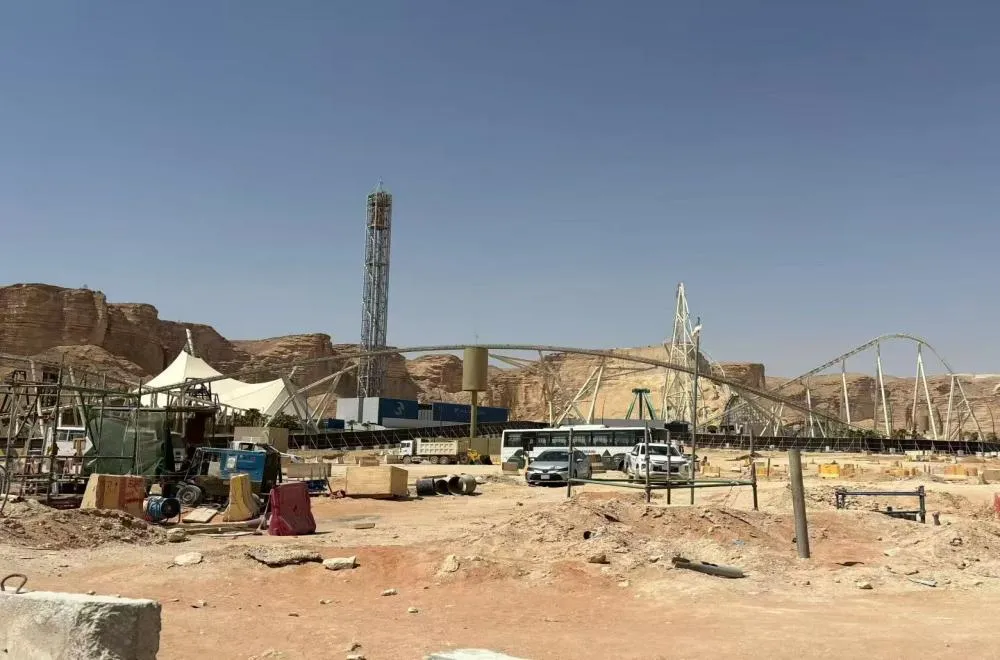

Hotels, office buildings, shopping malls, and retail spaces demand high-quality tile finishes within tight construction timelines. Our Tile Laying Robot enables efficient, consistent tile installation across large commercial areas, helping construction teams maintain installation accuracy while improving overall project efficiency. The result is a professional finish with reduced manual workload and more predictable project delivery.

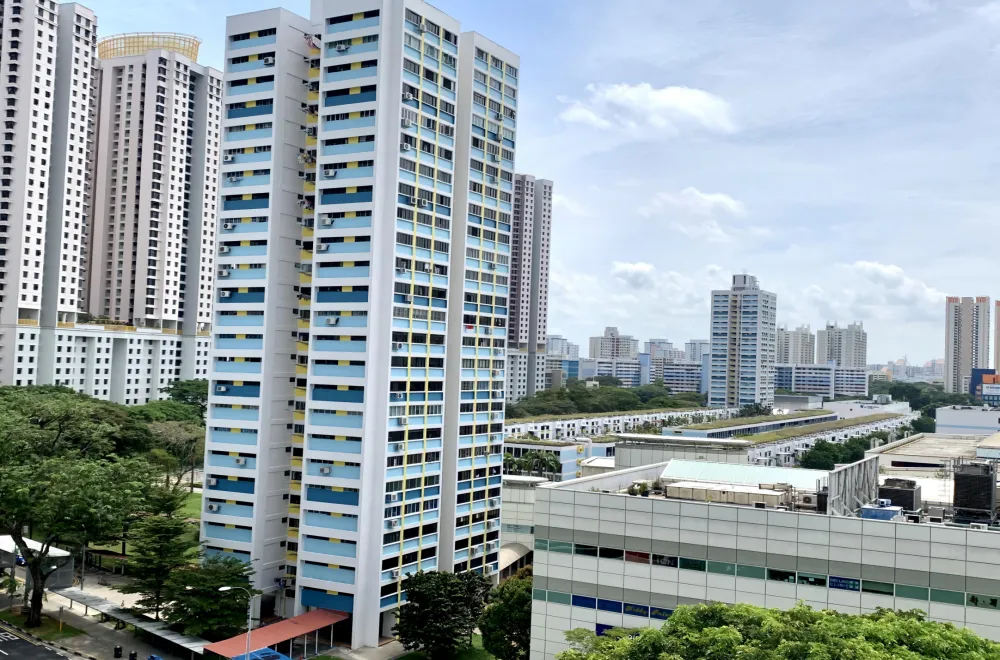

Hospitals, schools, airports, and transportation hubs require durable tile installation that meets strict construction standards. Designed for large-scale building projects, our tile paving robot delivers repeatable positioning accuracy and stable installation performance across expansive floor areas. It supports contractors in achieving reliable quality while improving productivity on public infrastructure projects.

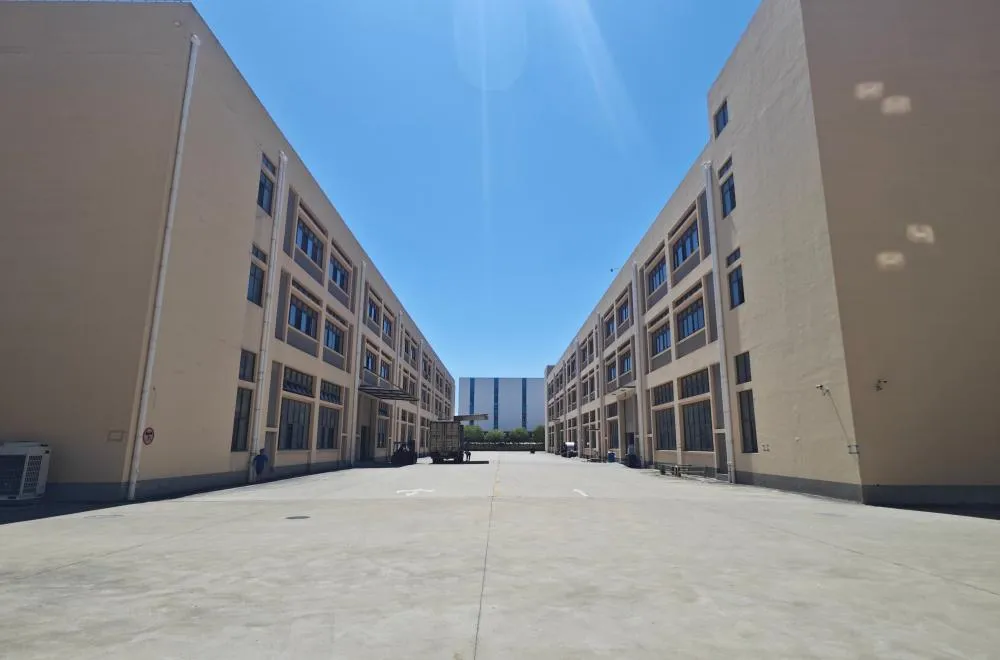

Factories, warehouses, and other industrial buildings often require extensive floor tile installation over large open spaces. Our automatic tile laying machine is built for continuous operation, enabling faster installation while maintaining consistent tile alignment across the entire project. This helps contractors reduce labor intensity, improve construction efficiency, and keep large-scale projects on schedule.
Unlike conventional tile laying robots that require rotational arm movement, this automatic tile laying robot adopts a same-direction pick-and-place system. The robotic arm always moves in alignment with the working surface, enabling efficient operation in narrow spaces while improving motion stability and workspace accessibility.
Among the most compact in its class. Designed with a footprint of less than 1000 mm in width and 800 mm in depth, the automatic tile laying machine can easily pass through most rooms, doorways, corridors, and elevators. Its compact structure allows flexible deployment across a wide range of indoor construction environments without compromising performance.
Equipped with a vision adjustment system based on deep learning, the robot calculates the relative position between tiles in real time. This Tile Laying Robot ensures grout joint errors stay within ±0.1 mm and flatness deviation within 1 mm, meeting the highest construction standards.
Using advanced control system and multi-sensor fusion technology, the robot precisely controls adhesive distribution and application patterns based on installation requirements. Consistent adhesive coverage helps reduce the risk of hollow tiles while creating a stable foundation for long-lasting tile performance.
Powered by a semi-supervised learning model trained on real-world construction data, the tile laying robot continuously optimizes tile-laying quality, coverage, and efficiency. Achieve consistent tile alignment, uniform grout joints, and stable surface flatness across large installation areas. The Tile Laying Robot minimizes human error and reduces rework, helping contractors deliver high-quality results that meet demanding construction standards.
With the most compact footprint among similar products and a same-direction tile gripping and laying system, the robotic arm operates without rotational motion through standard doorways, corridors, and elevators, allowing the robot to work efficiently in confined indoor environments. Contractors can deploy the robot across more project areas with greater flexibility.
Specialized in large-area tiling, the robot can lay 80–120 standard tiles per day (approximately 5 tiles every 10 minutes). A single unit achieves the daily output equivalent to 6–8 skilled workers. It helps accelerate project schedules while reducing labor dependency and improving overall site productivity.
Since deployment, there have been zero safety incidents. Equipped with comprehensive active and passive safety systems, dual-layer protection, the floor tile paving robot provides reliable protection for both operators and surrounding personnel. Stable safety performance supports continuous operation across a wide range of construction environments.
The intuitive tablet-based interface enables one-click operation without programming knowledge. After basic training, ordinary construction workers can quickly learn to operate the robot independently, reducing deployment time on site.
Built for long-term construction use, the Tile Laying Robot delivers stable performance with minimal maintenance requirements. Reliable operation helps reduce downtime and supports consistent productivity throughout the project lifecycle.
General & Operational Performance
| Parameter | Specification / Value |
| Tile Size Compatibility | 600×600mm / 800×800mm |
| Batch Laying Capacity | 5 tiles / cycle |
| Tiling Efficiency | 120s / tile (5 tiles per 10‑min cycle) |
| Feed Height | 726mm |
| Tiling Precision | Joint Gap ≤ 1.0mm Lippage Flatness ≤ 1.0mm |
| Equipment Stability | MTBF: ≥ 5000hOperational Lifetime:5‑10 yrs |
Physical & Mechanical Specifications
| Parameter | Specification / Value |
| Dimensions | 9607801750mm |
| Weight | 660kg |
| Packaging Dimensions (L/W/H) | 125011002050mm |
| Material Tank Capacity | 60L |
| Minimum Clearance Width | 840mm |
Mobility & Navigation Control
| Parameter | Specification / Value |
| Operating Speed | 0‑0.3m/s |
| Navigation Positioning Accuracy | ±30mm |
| Maximum Climbing Angle | 10° |
| Obstacle‑Cross | 30mm |
Power & Battery System
| Parameter | Specification / Value |
| Operating Power | 3kW |
| Battery Specifications | 48V, 105Ah |
| Battery Life | 4h+4h (Including 2 Batteries) |
| Charging time ≤ 3h≥80% capacity after 2,000 cycles | |
| Easy manual battery replacement24/7 continuous operation |
Safety & Environmental Conditions
| Parameter | Specification / Value |
| Safety Protection | Active: LiDAR Obstacle AvoidancePassive: Rubber Crash Strips |
| Operating Temperature | 5℃ to 40℃ |
| Operating Humidity | ≤ 85% RH |
The Tile Laying Robot supports standard 600 × 600 mm and 800 × 800 mm floor tiles, with a maximum tile weight of 20 kg. It is designed for large-format tile installation commonly used in residential, commercial, and public construction projects
No. The Tile Laying Robot is designed for human-robot collaborative operation, automatically completing large-area tile installation while workers handle corners, edges, and other complex areas. This combination improves productivity while maintaining installation quality.
The Tile Laying Robot uses an AI-powered vision alignment system to detect tile positions and make real-time placement adjustments. It achieves grout joint accuracy within ±0.1 mm and surface flatness deviation within 1 mm, helping deliver consistent installation quality across large areas.
